WLAN
Standards:
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds:
AC1900
5 GHz: 1300 Mbps (802.11ac)
2.4 GHz: 600 Mbps (802.11n)
WiFi Range:
3 Bedroom Houses

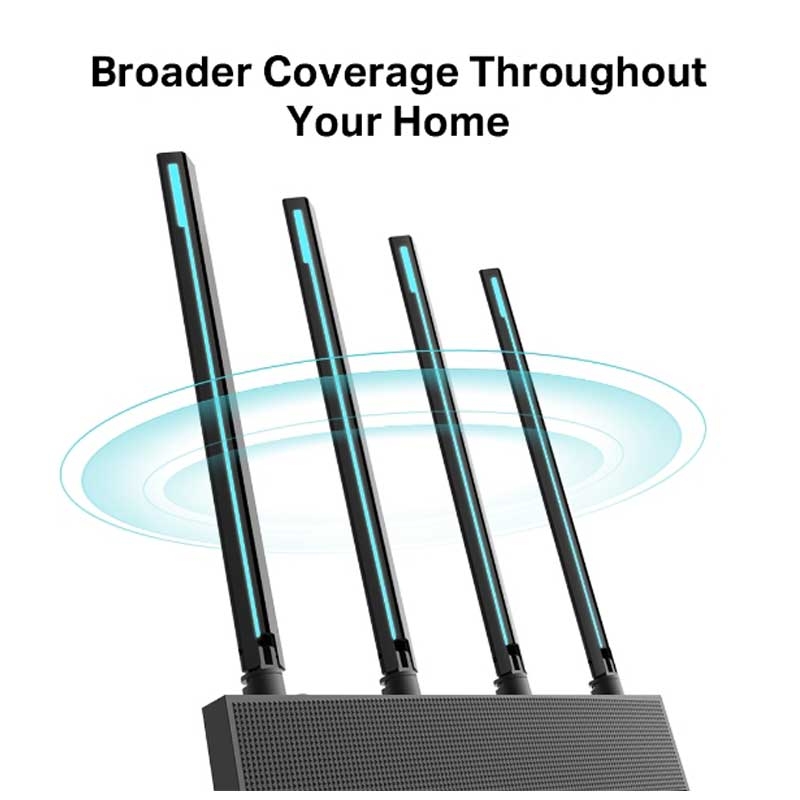

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity:
Medium
Dual-Band
Allocate devices to different bands for optimal performance

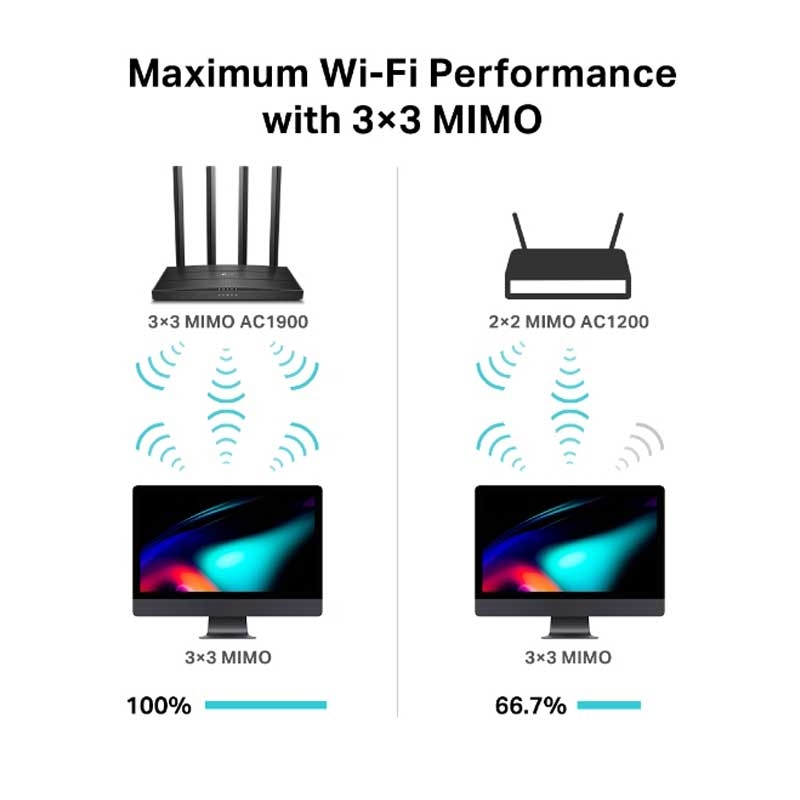

3×3 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
Working Modes:
Router Mode
Access Point Mode
HARDWARE
Processor: 1.2 GHz CPU

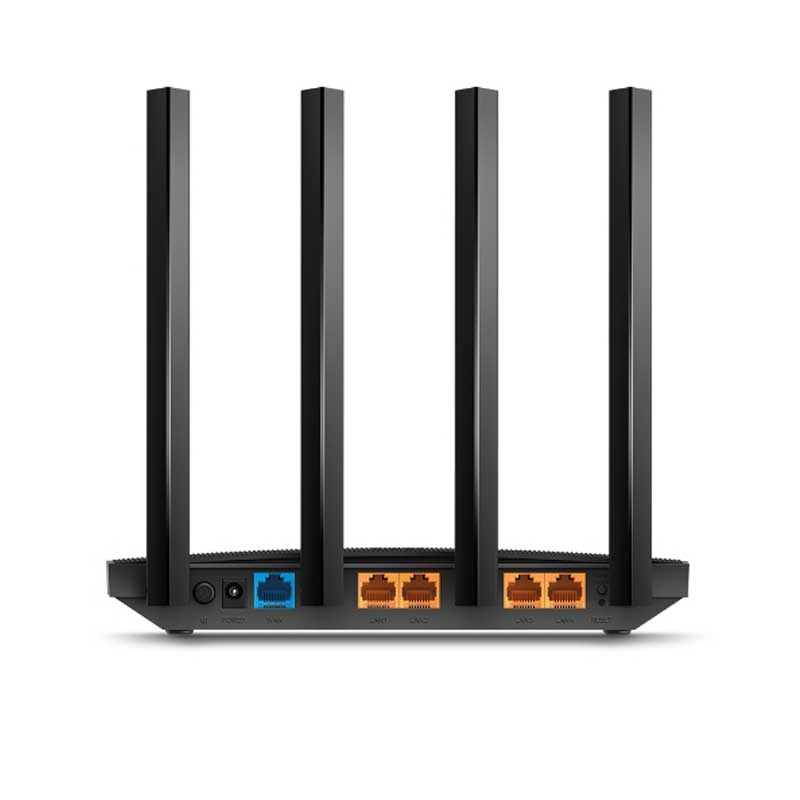

Ethernet Ports: 1× Gigabit WAN Port; 4× Gigabit LAN Ports
Buttons: WPS/Wi-Fi Button; Power On/Off Button; Reset Button
Power: US Version (12 V = 1.5 A)
EU Version (12 V = 1 A)
SICHERHEIT
WiFi Encryption:
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security:
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
SOFTWARE
Protocols:
IPv4
IPv6
OneMesh™:
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental Controls:
URL Filtering
Time Controls
WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service:
QoS by Device
Cloud Service OTA Firmware Upgrade:
TP-Link ID
DDNS
NAT Forwarding Port Forwarding:
Port Triggering
DMZ
UPnP
IPTV:
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP:
Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management:
Tether App
Webpage
PHYSICAL
Dimensions (W×D×H): 8.5 × 4.6 × 1.26 in (215 × 117 × 32 mm)
OTHER
System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications:
FCC, CE, RoHS
Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission Power :
CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.25GHz)
FCC:
<30dBm(2.4GHz & 5GHz)
WiFi Reception Sensitivity
5GHz:
11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm
11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm
11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm
11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
2.4GHz:
11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm
11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm
11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
